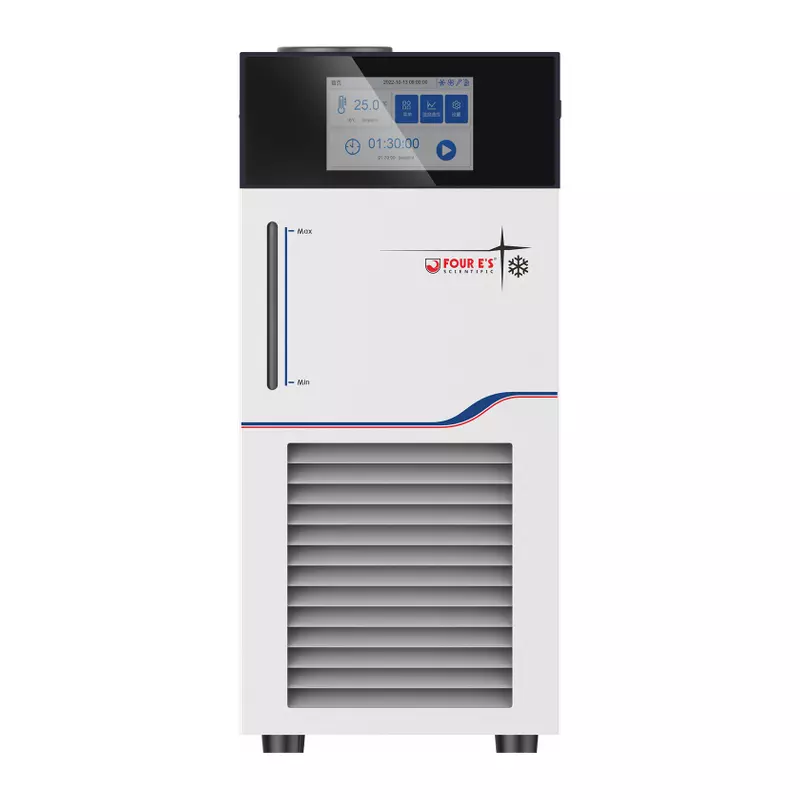

Recirculating Chiller
Recirculating Chiller CH800 provides an economic and environmentally friendly cooling solution for many laboratory applications. With precise temperature control, the device achieves excellent temperature stability and is suitable for a wide range of applications including cooling of rotary evaporators, reactor blocks, vapor barriers, or heat exchangers.
The chiller, also known as recirculating chiller, is a cooling device that provides a continuous supply of water at a constant temperature and pressure. It cools water through the cooling system, delivers cool water to the equipment required via pump to remove heat and flows back to the bath.
Specification
| Model | CH800 | |
| Working temperature range | -20°C RT | |
| Cooling capacity | @20°C | 750W |
| @10°C | 650W | |
| @0°C | 500W | |
| @-10°C | 400W | |
| @-20°C | 200W | |
| Time to cool from RT (25°C) down to -20℃ | ≤30min | |
| Pump Flow Max. | 22 L/min | |
| Pump pressure Max. | 1 bar | |
| Bath volume | 5 L (max storage 5.3L) | |
| Temperature stability DIN 12876 | ±0.3 K | |
| Temperature Display Accuracy | ±0.3°C | |
| Refrigerant | R290 | |
| Power supply | 100-120VAC/200-240VAC; 50Hz/60H | |
| Wattage | Max 750W | |
| Weight | ≤35Kg | |
| Dimension(WxDxH) | 235×468×535 mm | |
| Noise | <55db | |
